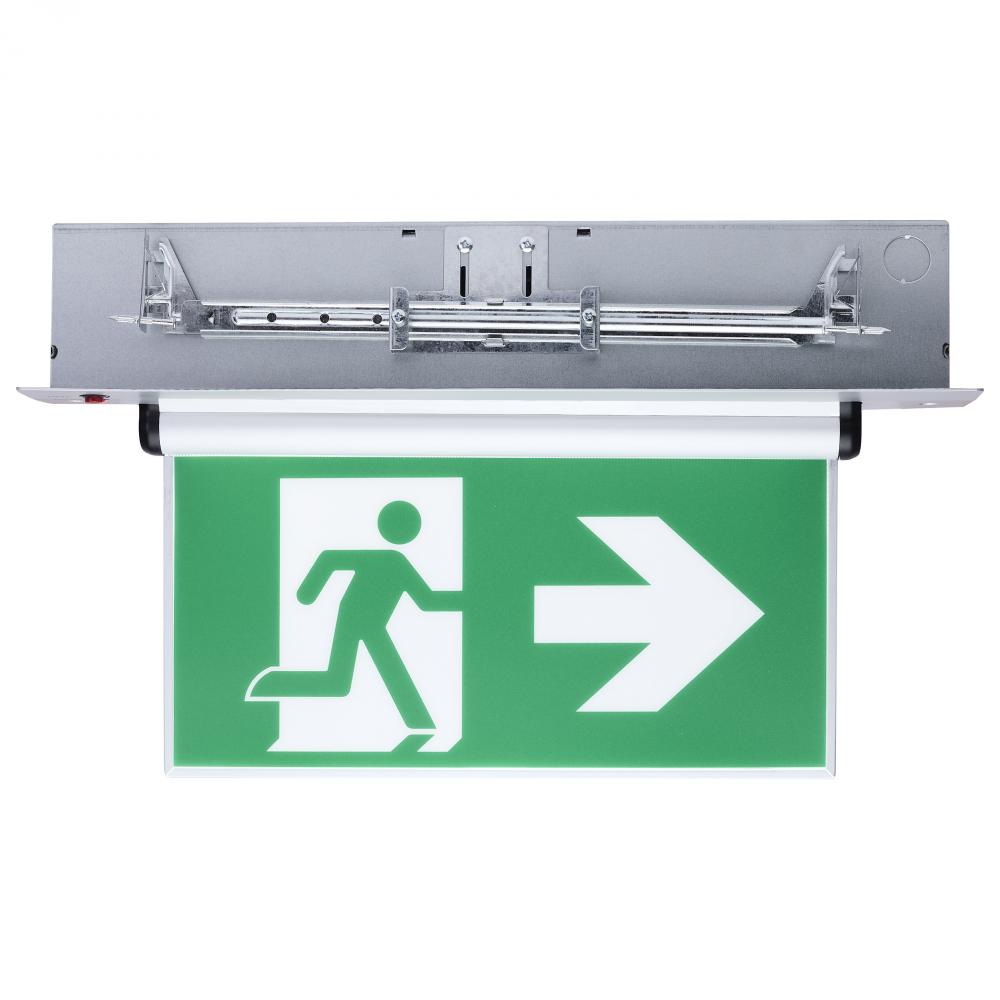

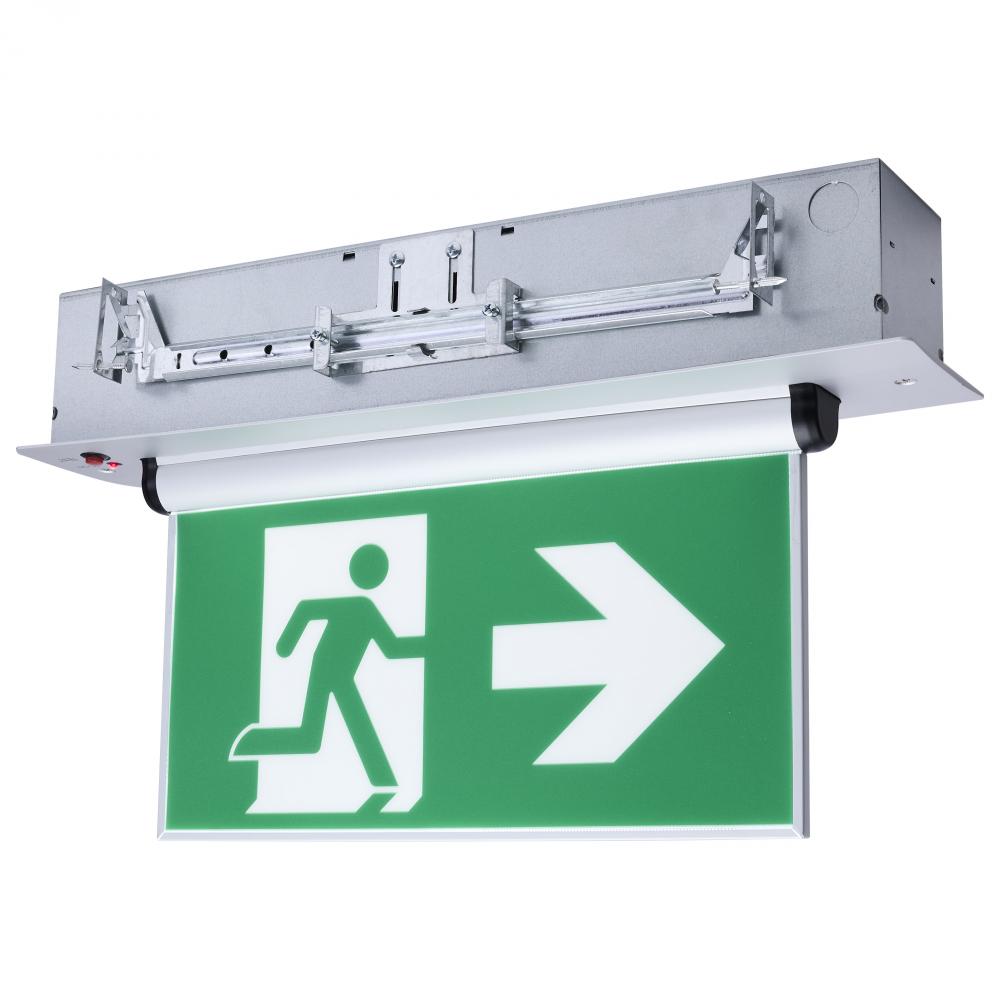

Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Universal Surface or
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer may be Out Of Stock.

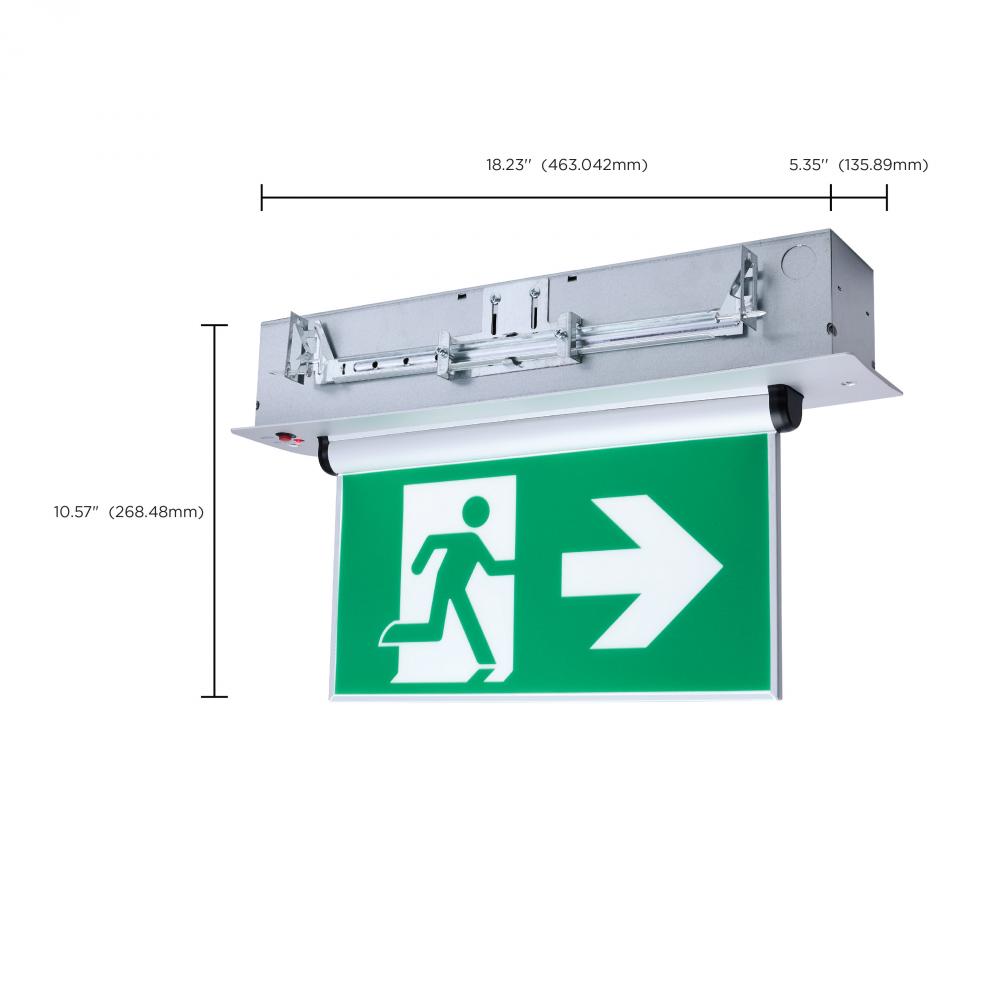

Dimensions
Height: 10.57"
Width: 18.23"
Product Overview
Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Universal Surface or Recessed Mounting; Pivoting Panel
Standard Information
Category:
Utility
Subcategory:
Exit Signs
Finish:
Aluminum
Option:
LED
Prop 65
Refinement Options
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Ship Carton Height:
8.66
Ship Carton Length:
18.5
Ship Carton Width:
4.72
Warranty:
2-Years
Amps:
0.028-0.009A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.4376
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - Only for sale in Canada
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Country Of Origin:
China
CRI:
80+
Depth:
5.35
Feature 1:
Single or Dual Face
Feature 10:
>500 Life Cycles
Feature 2:
Integrated Battery Backup
Feature 3:

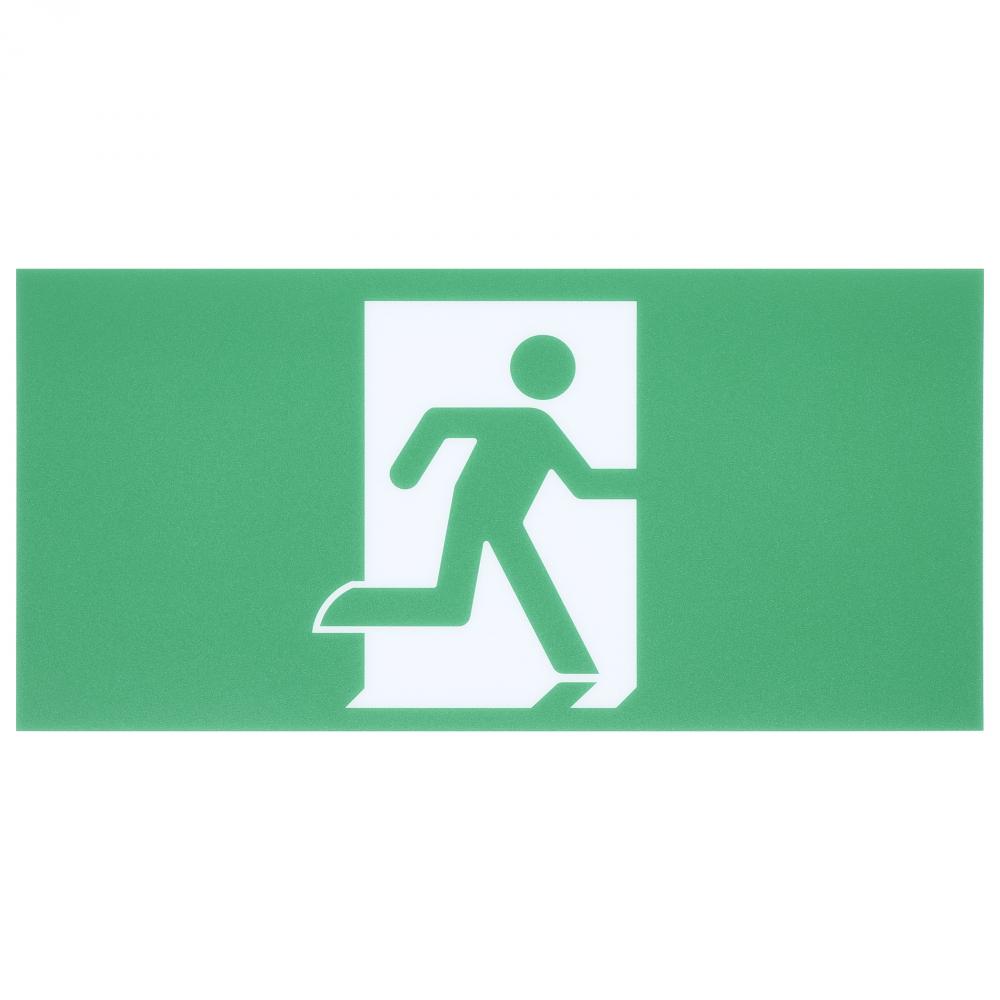

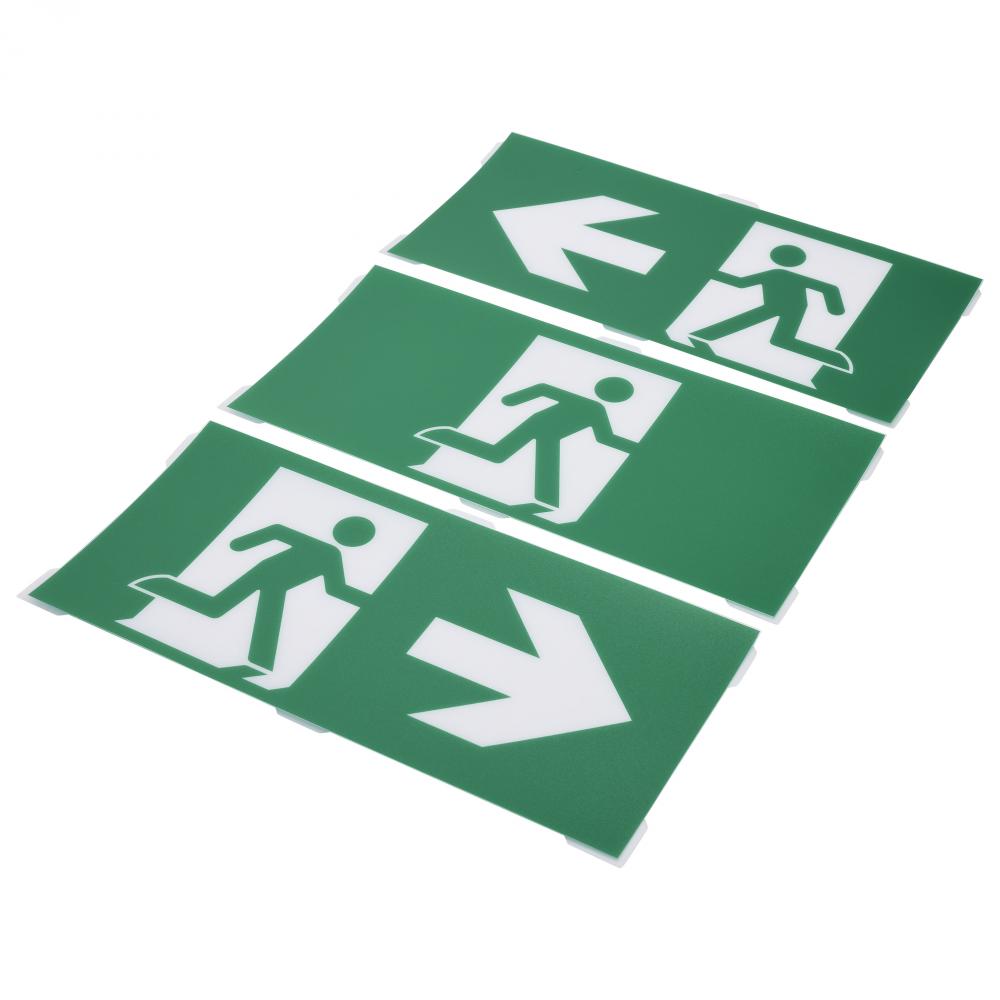

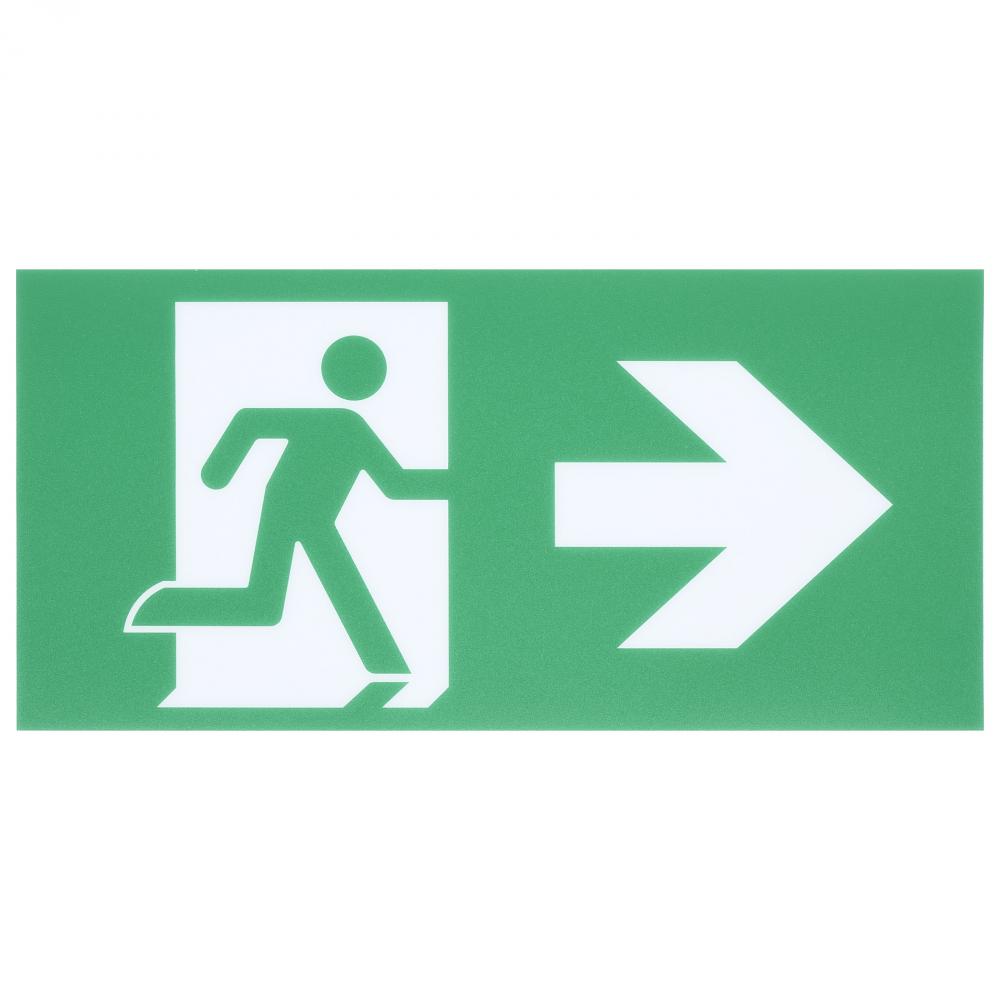

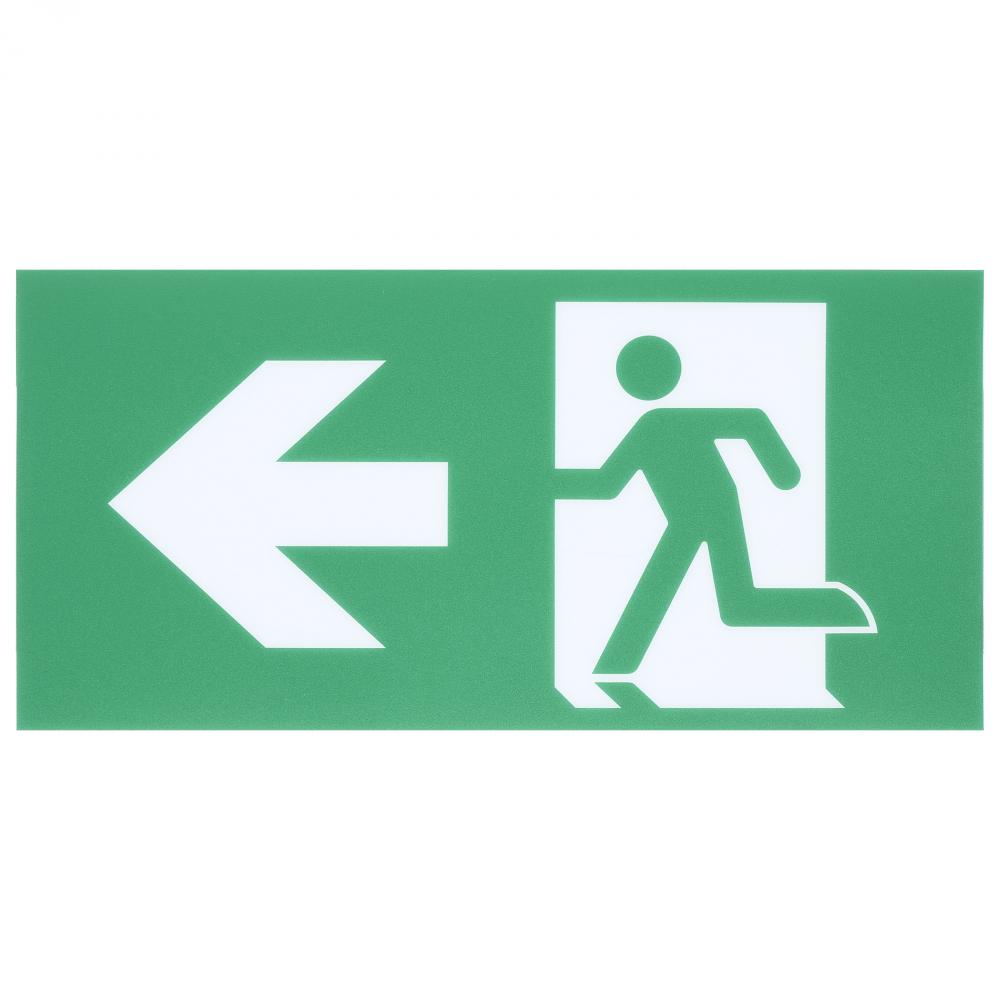

Interchangeable Pictograms
Feature 4:
Universal Mounting with Pivoting Pictogram Panel
Feature 5:
Damp Location Rated
Feature 6:
120-Minute Battery Run Time
Feature 7:
Complies with ICES-005 Class B
Feature 8:
CSA, OSHA, and NFPA Compliant
Feature 9:
Push-to-Test Button
Finish Family:
Metallic
Has Camera:
No
Has Emergency Battery:
Yes
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP40
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Acrylic
Long Description:
Keep your building safe and secure with the SATCO NUVO LED 67-530 Running Man Sign. Choose single or dual-face installation and customize the pictogram to fit your needs. The unique pivoting head on this model allows for optimal positioning based on your l
Material:
Aluminum
Mounting Procedure:
Universal
Operating Frequency:
60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.38
Quantity In Pack:
1
R9 Value:
15
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs. Choose single or dual-face installation and customize the pictogram to fit your needs. The unique pivoting head on this model allows for optimal positioning based on your locatio
