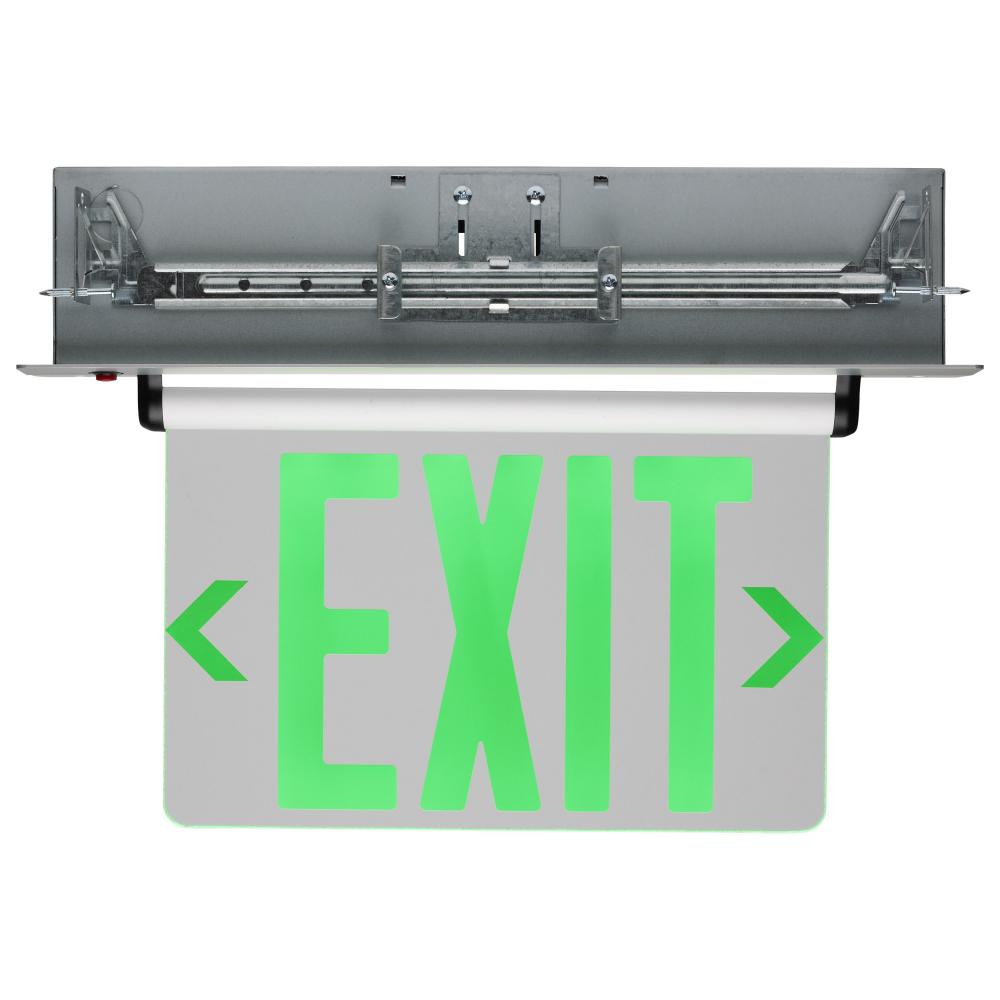

Green (Clear) Edge Lit LED Exit Sign; 2.94 Watts; Single Face; 120V/277 Volts; Clear Finish
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 257 items available.
Dimensions
Height: 11.00"
Width: 15.75"
Product Overview
Green (Clear) Edge Lit LED Exit Sign; 2.94 Watts; Single Face; 120V/277 Volts; Clear Finish
Standard Information
Category:
Utility
Subcategory:
Exit Signs
Finish:
Clear
Option:
LED
Prop 65
Refinement Options
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Additional Info:
Input Wattage: 2.94W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.94W
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Ship Carton Height:
8.66
Ship Carton Length:
16.34
Ship Carton Width:
4.72
Warranty:
2 Year Limited
Amps:
0.025/0.011A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.3865
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
Depth:
4
FCC Compliant:
Yes
Feature 1:
Green Lettering
Feature 2:
Single Face, Clear
Feature 3:
Configurable Arrows
Feature 4:

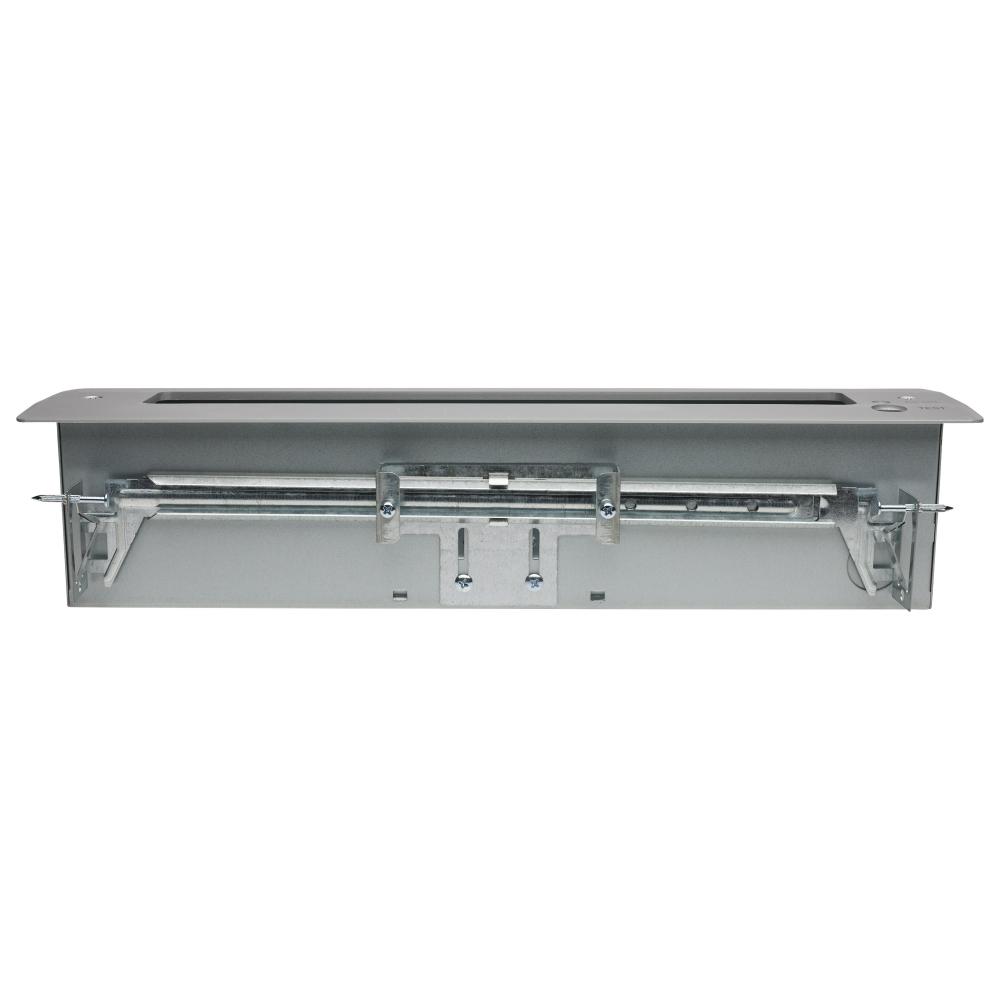

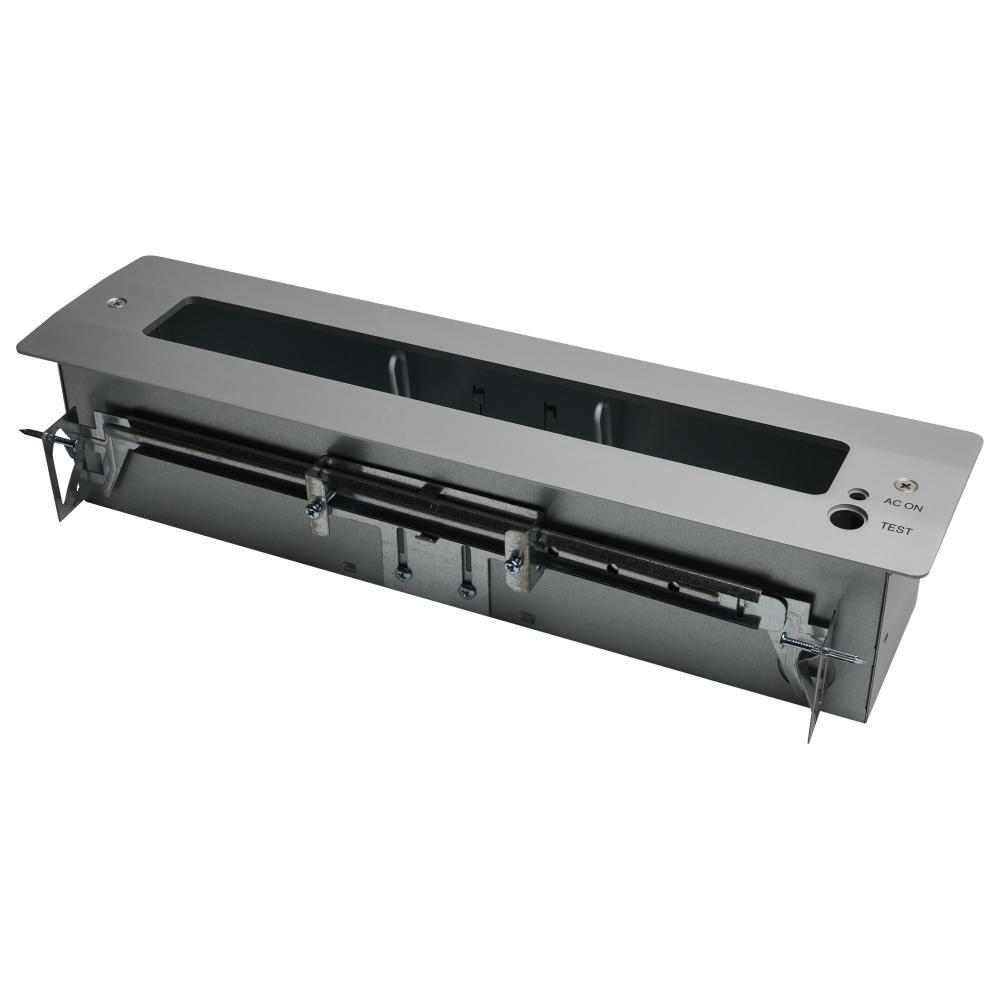

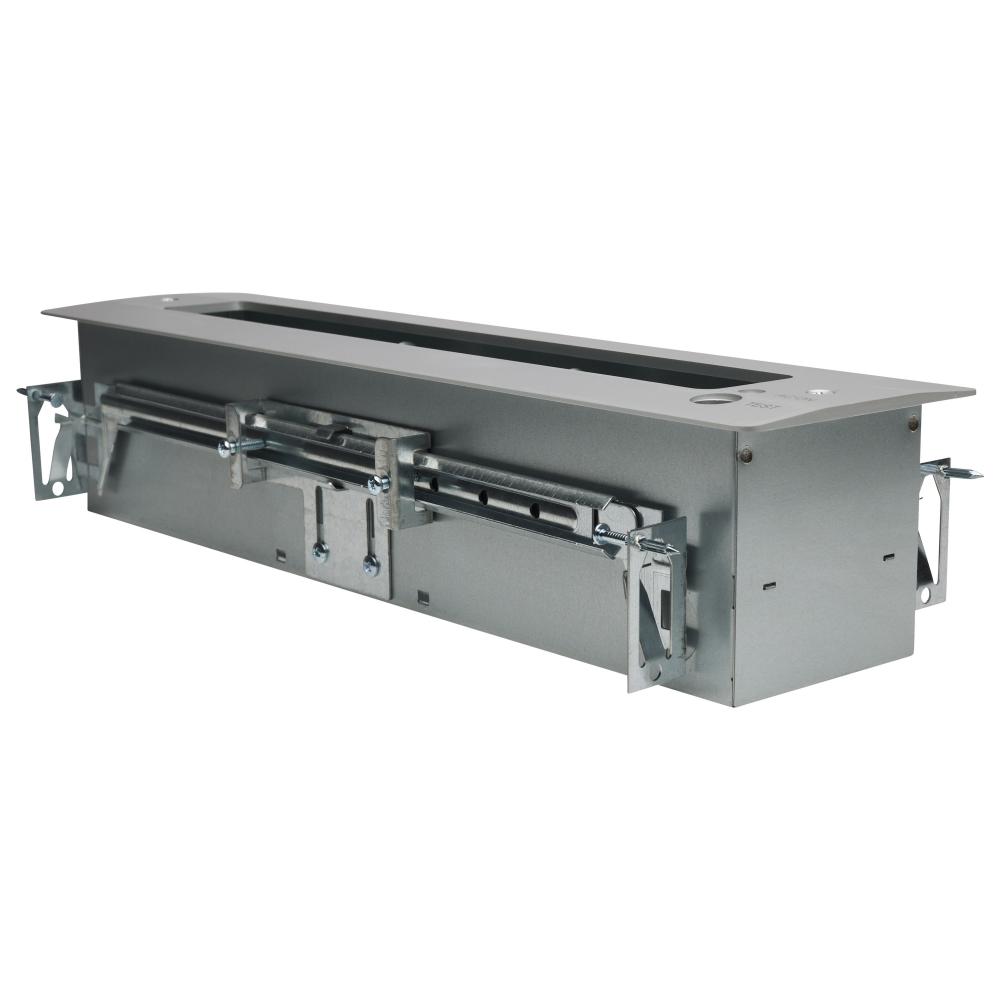

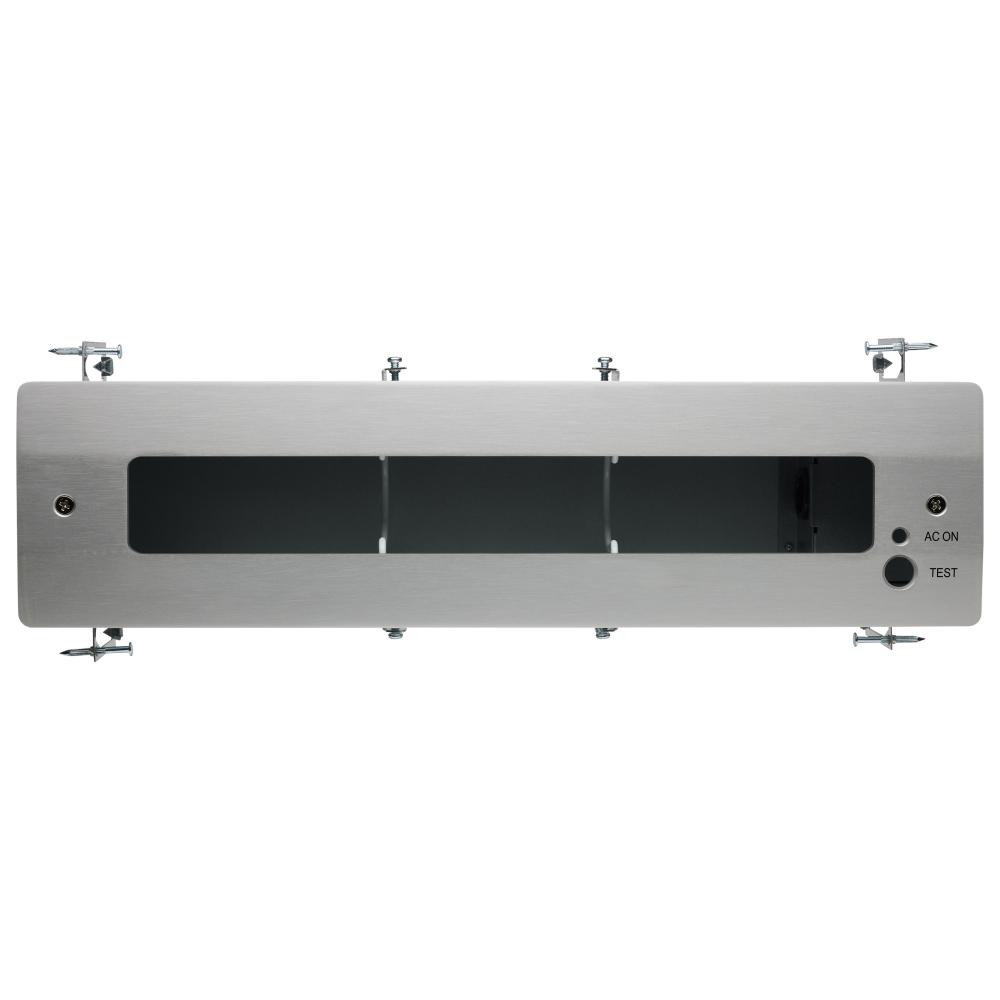

Recessed Ceiling or Wall Mount
Feature 5:
Damp Location
Feature 6:
Sleek Brushed Aluminum Housing
Feature 7:
90 Minute Backup Run Time
Feature 8:

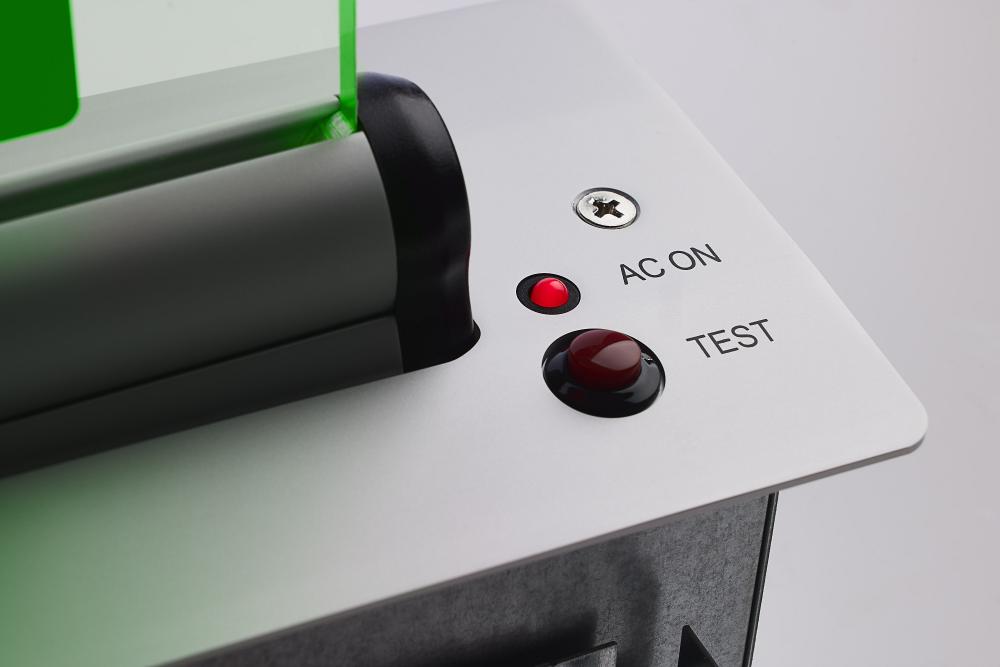

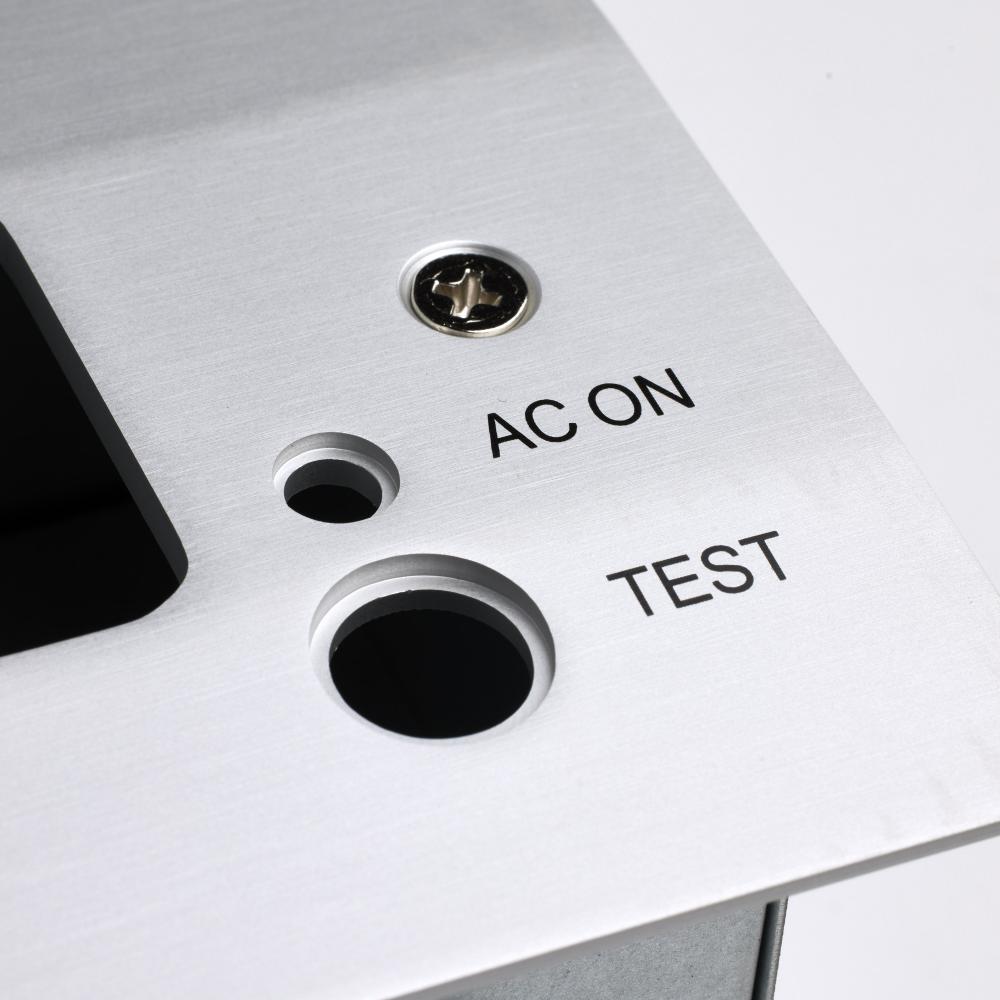

Test Switch and AC Supply Indicator
Feature 9:
2 Year Warranty
Finish Family:
Clear
Has Emergency Battery:
Yes
Includes:
Mounting hardware and accessories
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Material:
Acrylic
Long Description:
SATCO|NUVO's LED Recessed Mount Edge-Lit Exit Sign 67-116 - the perfect solution for your commercial, hospitality and multi-family spaces. This sign has green lettering in a single face clear design with a sleek, brushed aluminum housing and offers con
Material:
Aluminum
Mounting Procedure:
Recessed Ceiling/Wall
Operating Frequency:
60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Recessed Mount Edge-Lit Exit Signs - the perfect solution for your commercial, hospitality and multi-family spaces. Available in four different configurations, these signs are designed with a sleek, brushed aluminum housing and offer c
Safety Listing:
ULus - Certified;ULus - Listed
Short Description:
REC EL EXIT SIGN - SF GR CLR
Specification Notes:
Aluminum, Acrylic Panel, 4.8V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Lumens/Illuminance: 73cd/m2 average; Letter Height: 6 in.; Letter Stroke: 0.75 in.
