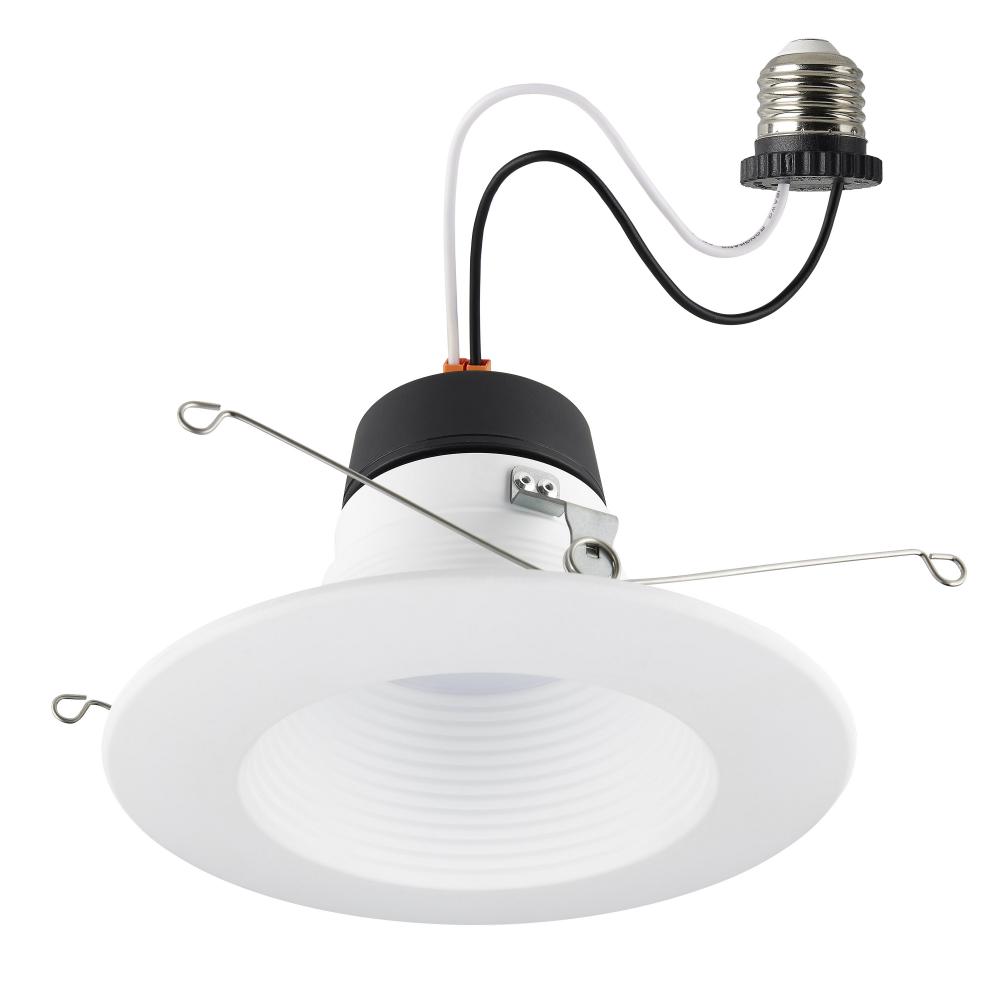

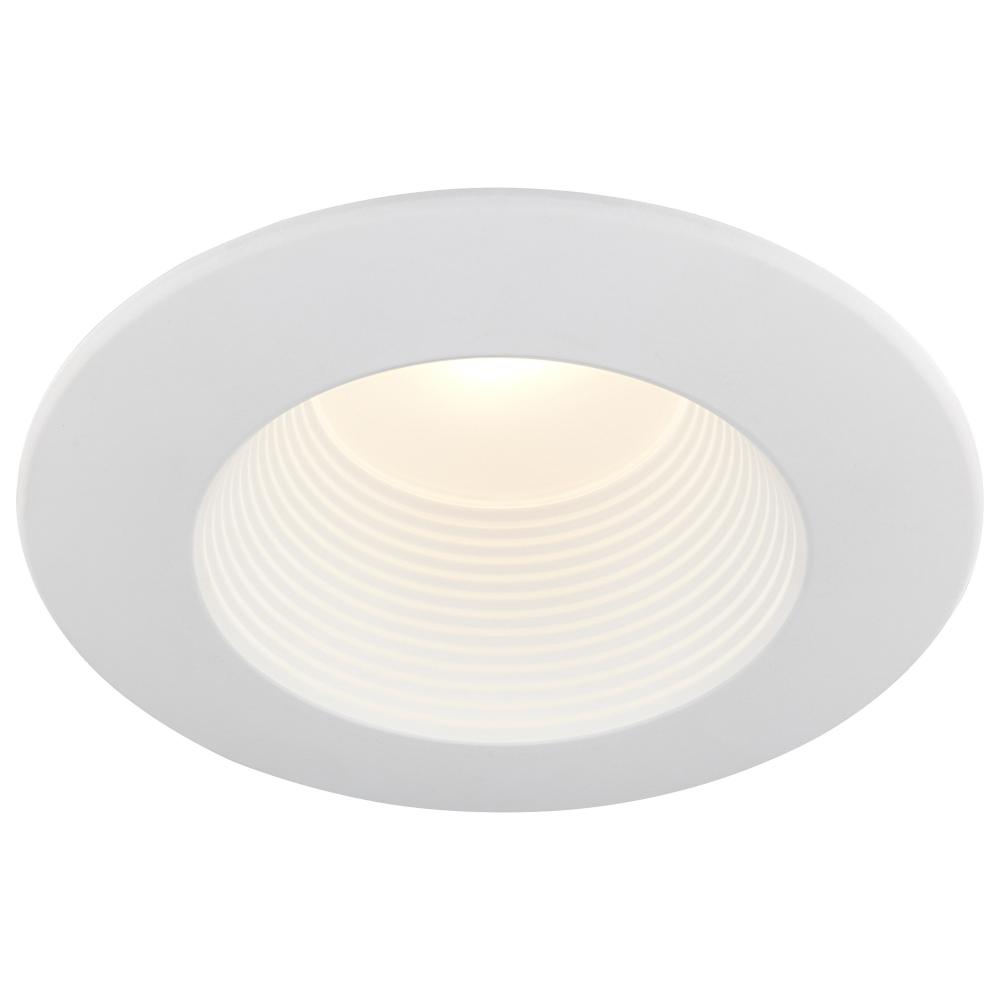

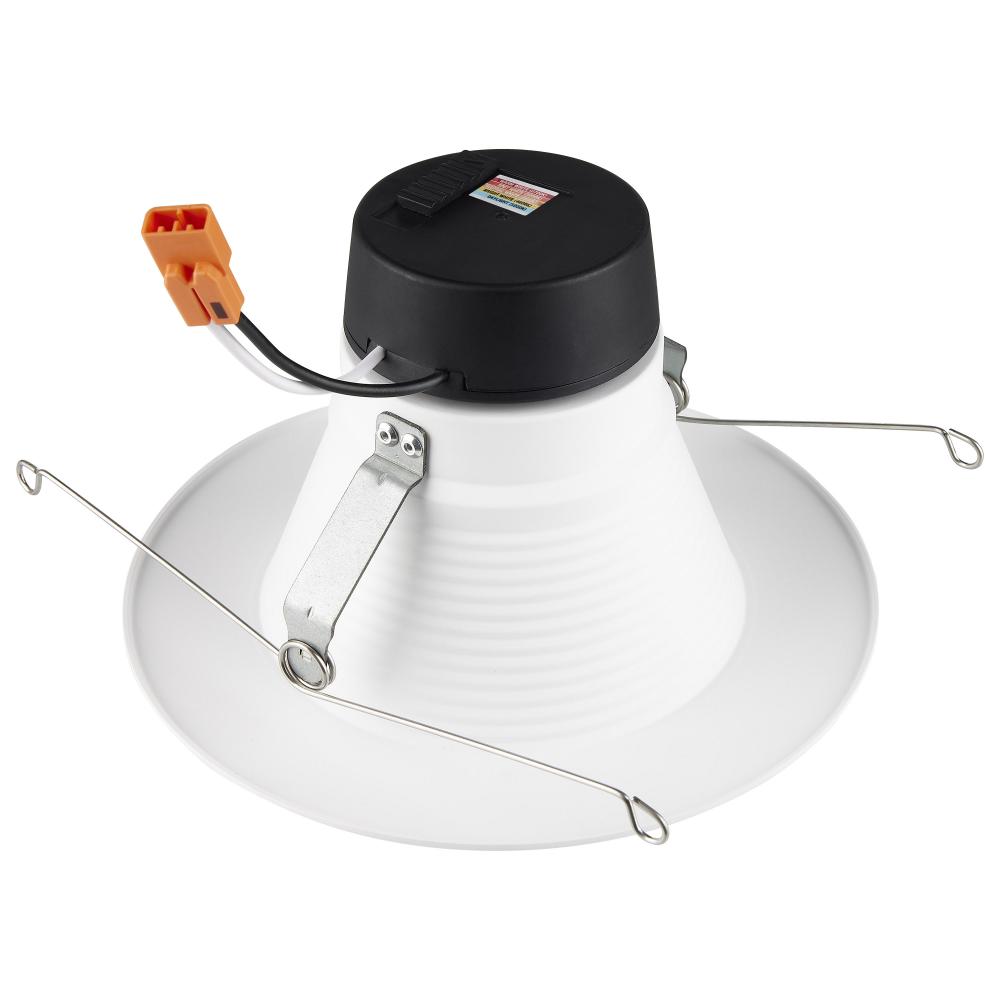

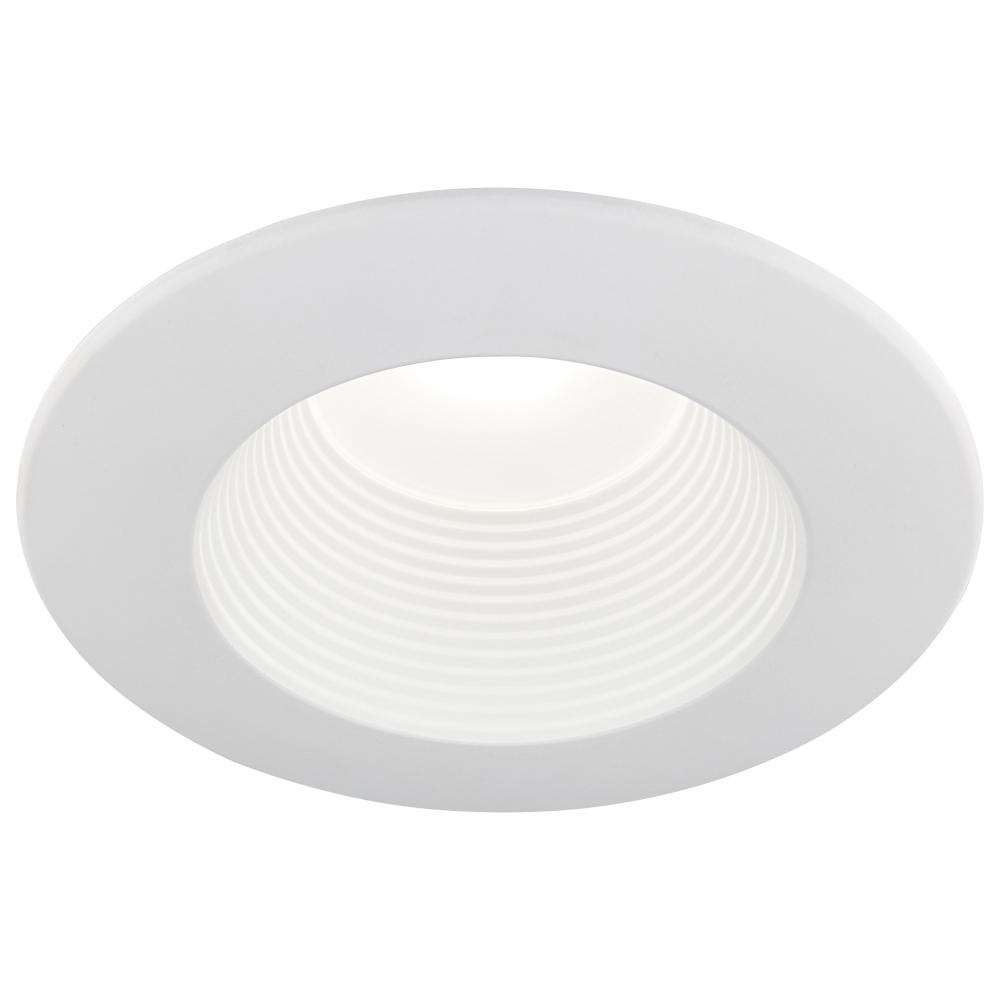

9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight (X3LG9)

Image may not reflect selected features
No Image
Available
9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight
additional image
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3LG9

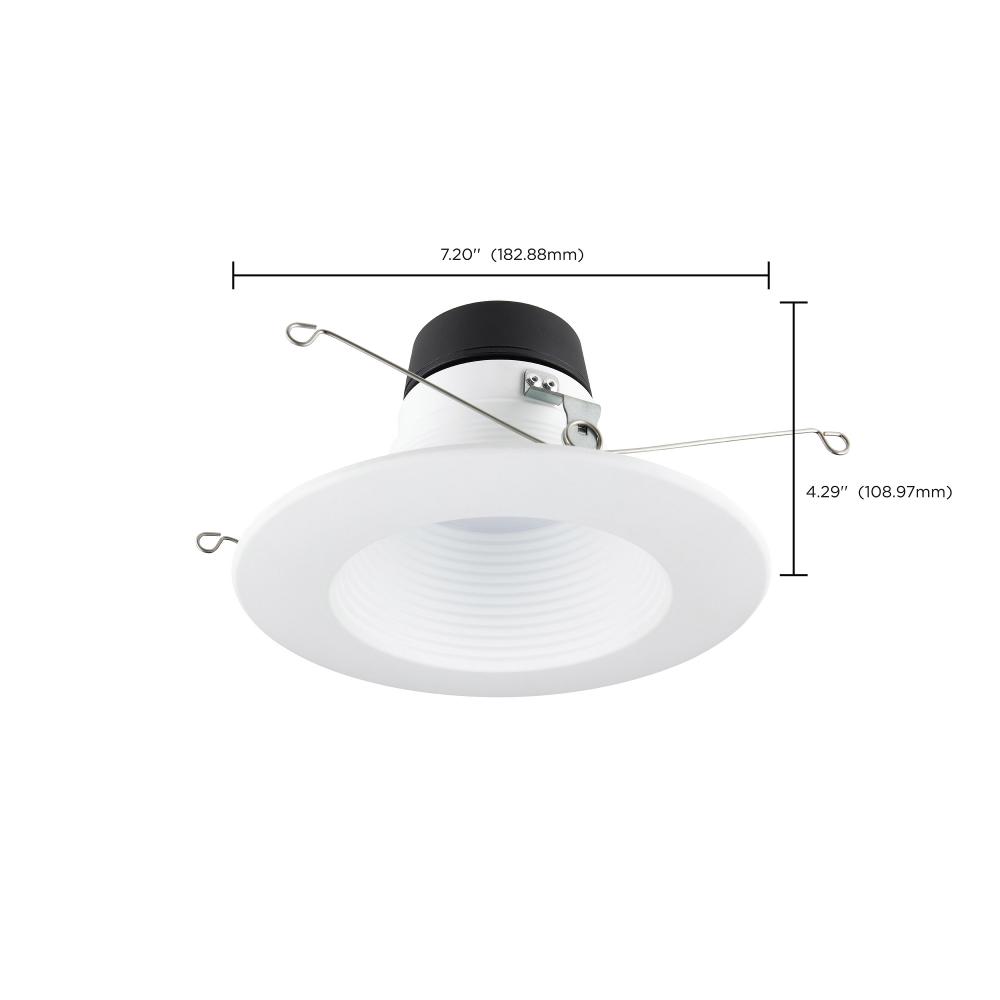

Dimensions:
Height: 4.29"
Width: 7.20"
White
Availability:
  • Manufacturer has 2375 items available.
Recommended Items
Description
Details
Downloads
9 Watt; 6 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star , LED , Prop 65
Lumens:
450-800
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.2
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
800L
Ship Carton Height:
7.5
Ship Carton Length:
4.25
Ship Carton Width:
8.44
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.075A
ANSI Base:
Integrated

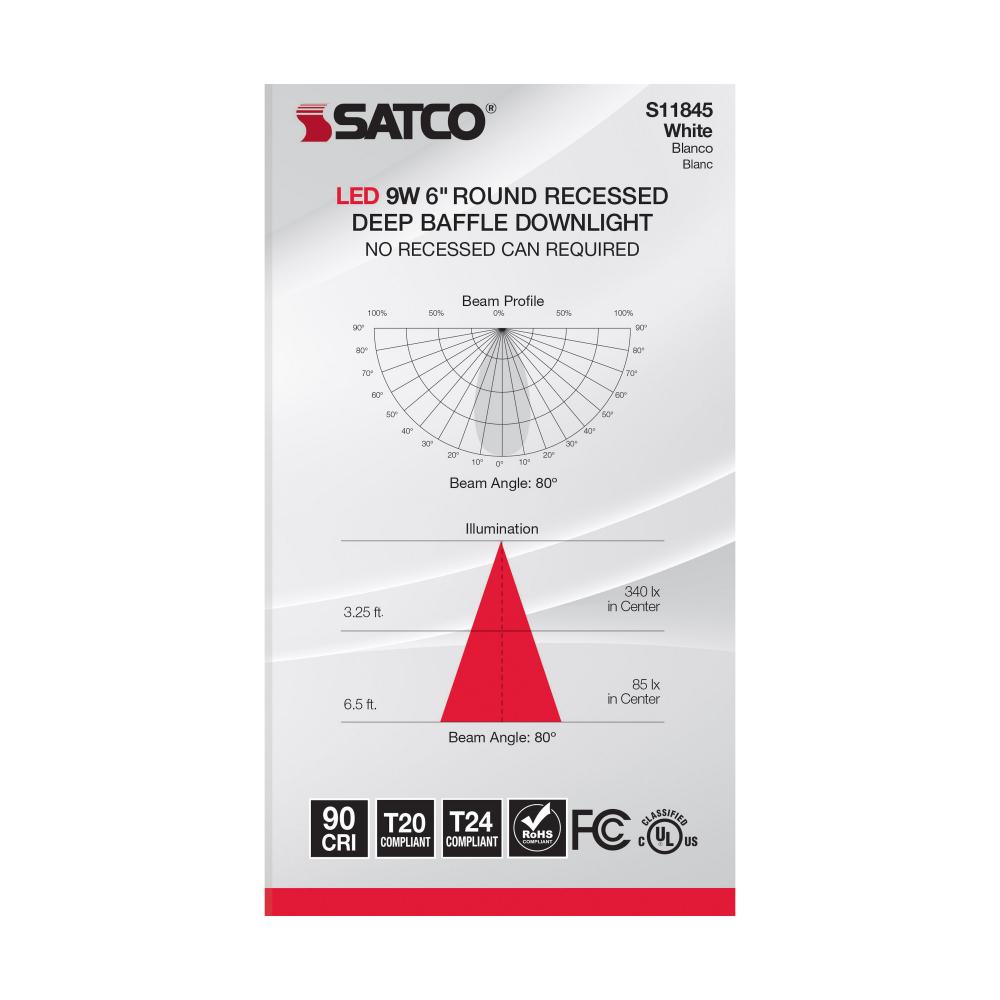

Beam Spread:
80
CA Prop-65:
Lead
Can Size:
6 in.
Carton Cubic Feet:
0.1557
Cartons Per Unit:
1

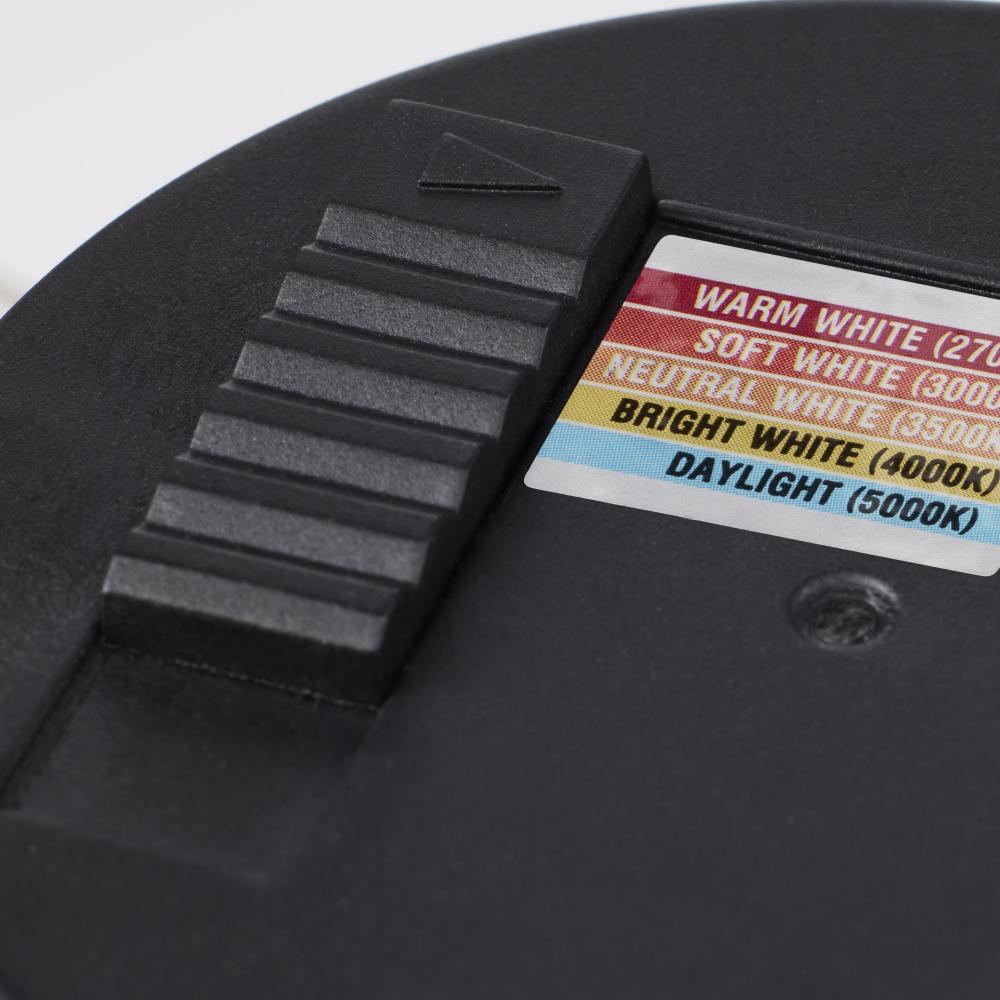

CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Connection:
Direct Wired
Country of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Efficacy:
88.89 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-2396913
FCC Compliant:
Yes

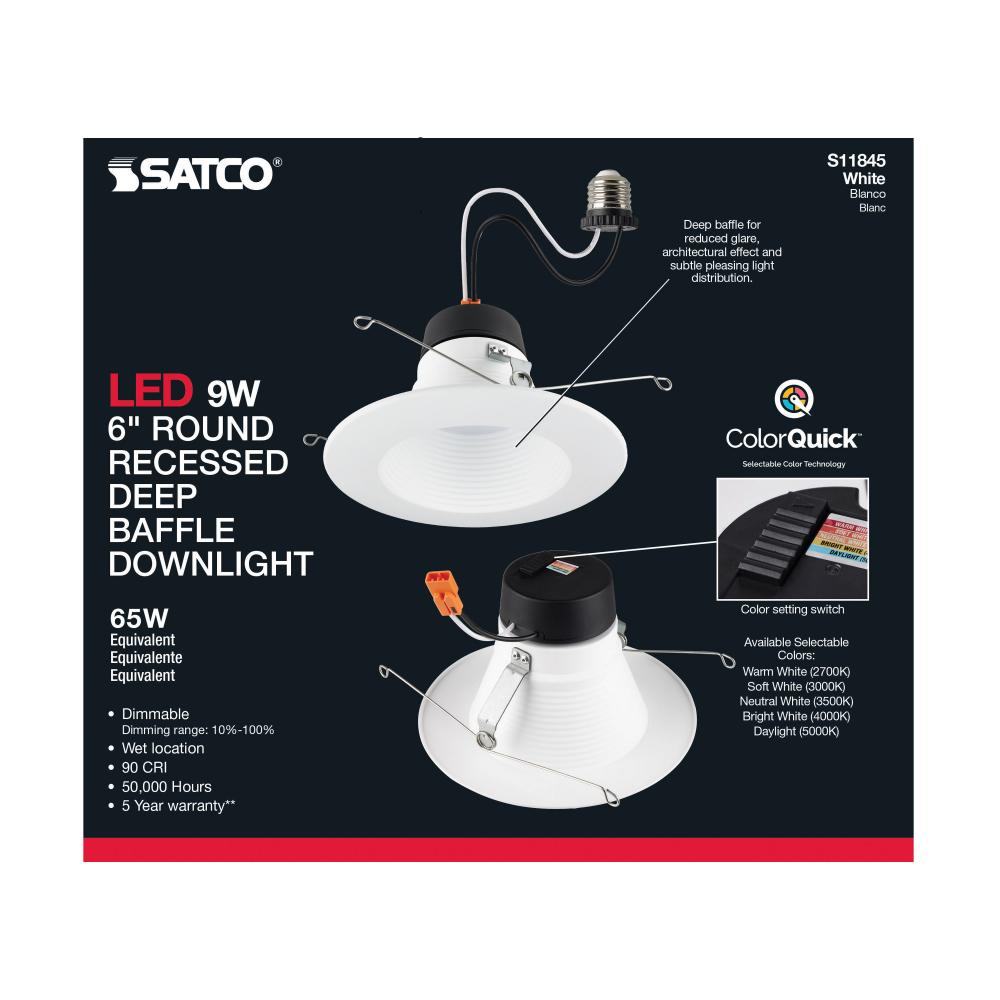

Feature 1:
ColorQuick Technology; CCT Selectable
Feature 2:
Reduced glare with subtle, pleasing light distribution
Feature 3:
Dimmable
Feature 4:
90 CRI and Wet location rated
Feature 5:
T20, T24 compliant
Feature 6:
Energy Star certified
Feature 7:
Rated life of 50,000 hours
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
65W
Includes:

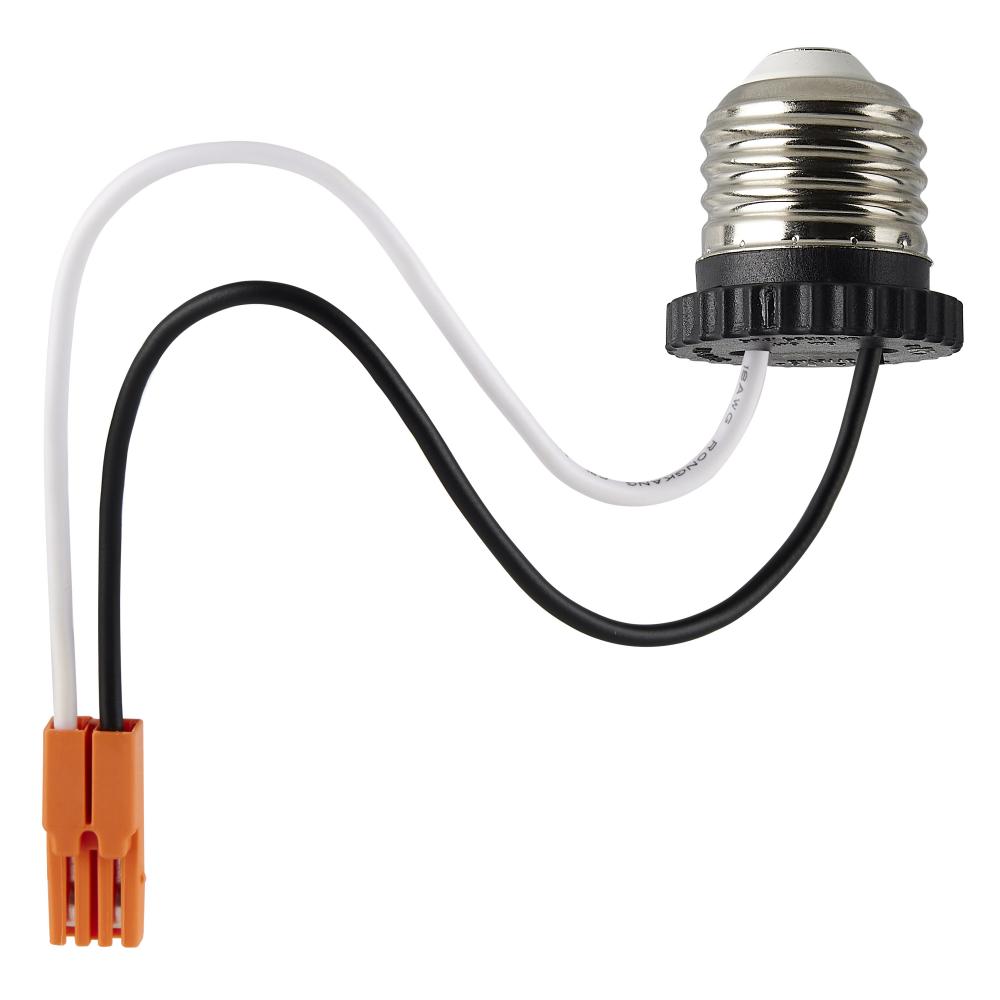

E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
The Satco S11845, 9 watt, 6 inch recessed retrofit is designed with the architect in mind. It represents an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Quantity In Pack:
1
R9 Value:
70
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco's latest LED recessed retrofits are designed with the architect in mind. They represent an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our latest
Safety Listing:
cULus - Classified
SDS class:
LED_Fixture
Short Description:
9WLED/DB/RDL/6/CCT-SEL/120V
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Trim Color:
White
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
0.53
