Product Overview

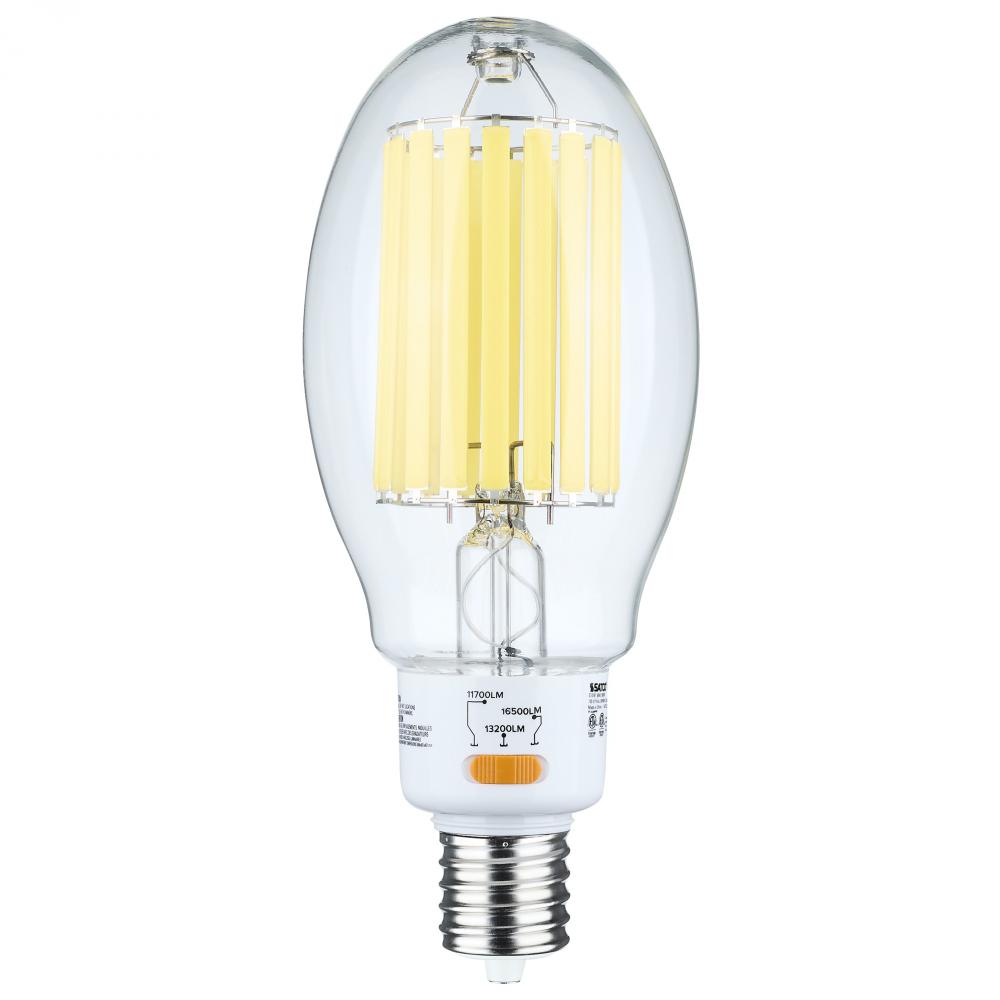

60/68/85 Wattage Selectable LED HID Replacement; ED37; 5000K; Mogul Extended Base; Clear; 120-277 Range Voltage

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

ED37

Diameter:

4.76

EA Length:

4.72

Harmonized Codes:

8539.52.0091

Length:

11.5

Lumens:

11700L/13200L/16500L

Shap Carton Width:

4.72

Ship Carton Height:

12.32

Ship Weight:

1.5

Warranty:

5-Years

Weight:

1.5

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

360

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Candle Power:

850

Carton Cubic Feet:

0.1588

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

Thailand

CRI:

80+

Dimmable Function:

Only dimmable through wattage selection switch on lamp

Dimming Type:

Step Dimming

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-93J453

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)

Efficacy:

195.00/194.12/194.12

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

Wattage Selectable

Feature 2:

Type B - Ballast Bypass

Feature 3:

Range Voltage 120V-277V

Feature 4:

360-Degree Illumination

Feature 5:

Wet Location Rated

Feature 6:

Universal Operating Position

Feature 7:

Glass Lamp

Feature 8:

EX39 Mogul base

Feature 9:

Rated for Use in Enclosed Fixtures

Has Camera:

No

Has Emergency Battery:

No

HID Equivalent:

320W/400W/450W

Housing Color:

White

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Location Rating:

Wet

Long Description:

SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED37 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting

Material:

Glass

Minimum Compartment Size:

Length: 13.74 in. Width: 16.97 in. Height: 16.97 in.

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Color Box

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

1

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps

SDS class:

LED_Lamp

Short Description:

85W/LED/HID/ED37/850/EX39/CL

Style:

Utility

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Watts:

60W/68W/85W
