Product Overview

18.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

T8

Diameter:

1

EA Length:

48

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

2400L

Shap Carton Width:

7.56

Ship Carton Height:

4.92

Ship Weight:

0.53

Warranty:

5-Years

Weight:

0.47

Additional Info:

Installation protection - will not light if ballast is not bypassed.

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

180

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

1.0332

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

Vietnam

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PLNRLCN42WOV

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

129.73 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Warm white light

Feature 2:

Damp rated for indoor use

Feature 3:

Enclosed Rated Lamp

Feature 4:

L:48.00 D:1.00

Feature 5:

T8, Frosted Finish

Feature 6:

Flicker Free - Less than 2%

Flicker Free:

Yes

Flourescent Equivalent:

32W

Has Camera:

No

Has Emergency Battery:

No

Housing Color:

White

Incandescent Equivalent:

90W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring

IOT Enabled:

No

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

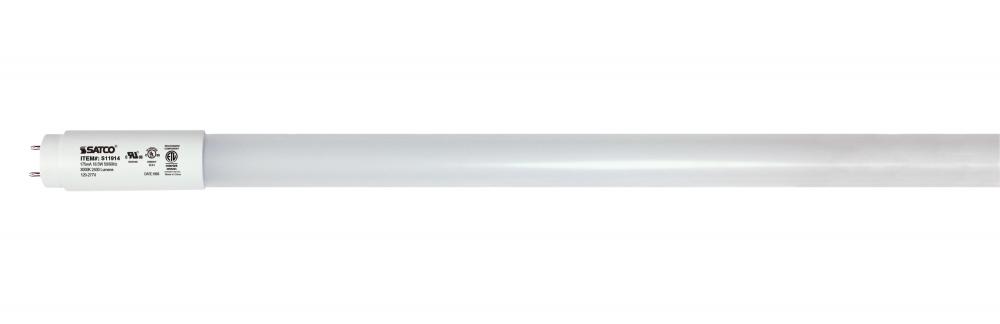

SATCO NUVO's S11914 18.5-watt T8 LED frosted tubular bulb offers warm white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproo

Material:

Glass

Nominal Length:

48

NSF Approved:

ETL Sanitation listed (conforms to NSF)

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

25

Pack Type:

Sleeve

Power Factor:

0.92

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 18.5-watt T8 LED frosted tubular bulb offers warm white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof prote

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

18.5T8/LED/48-830/LF/BP

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Total Harmonic Distortion:

20%

Wattage Selectable:

No

Watts:

18.5W
