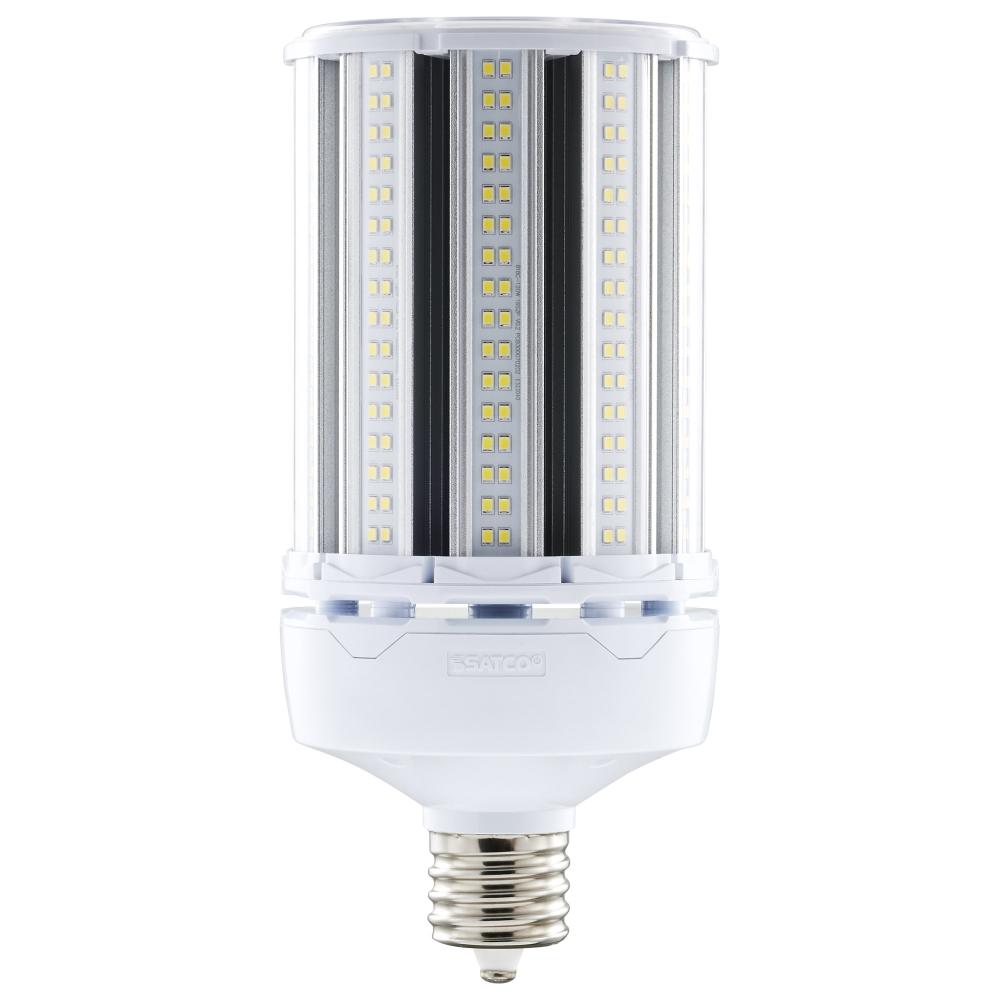

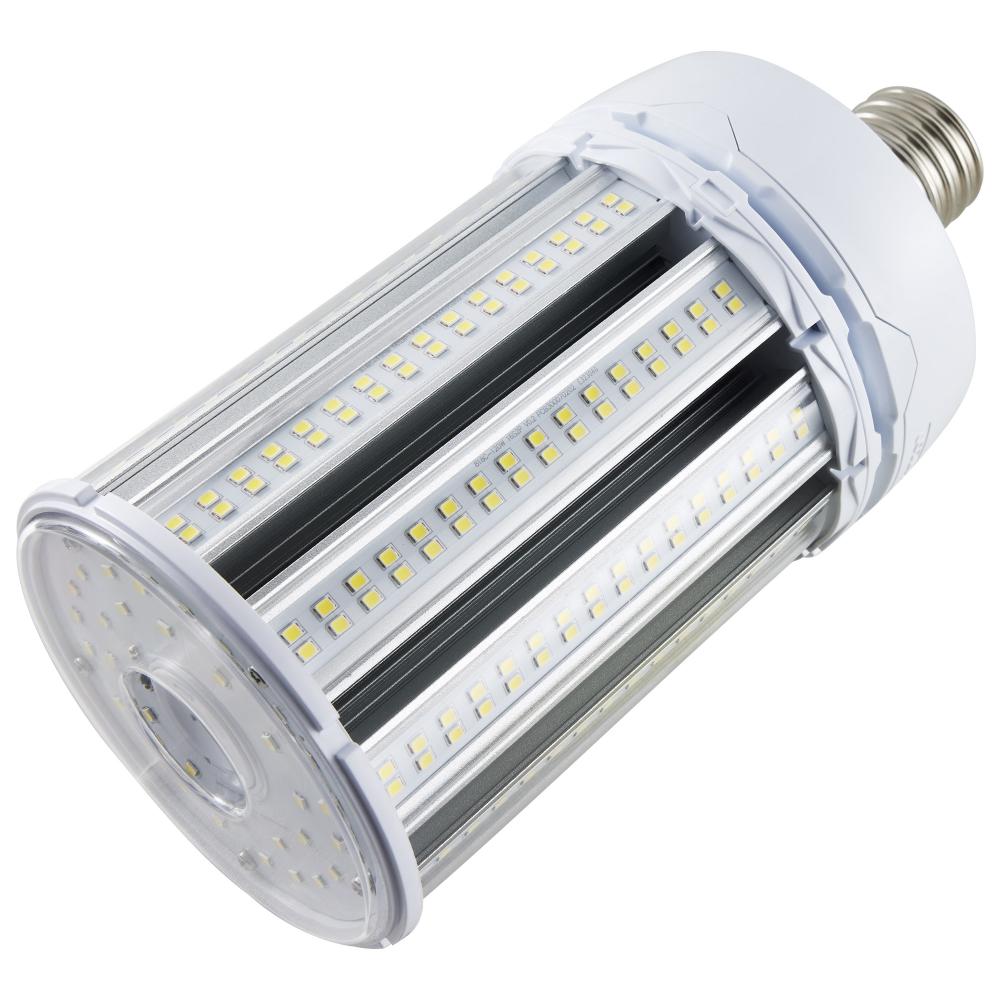

120 Watt LED HID Replacement; 4000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 191 items available.
Dimensions
Width: 4.72"
Product Overview
120 Watt LED HID Replacement; 4000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro
Standard Information
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
3501-4000
Refinement Options
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
35000
Bulb Kelvin:
4000K
Bulb Shape:
Corncob
Diameter:
4.72
EA Length:
5.31
Harmonized Codes:
8539.52.0091
Length:
10.26
Lumens:
16440L
Shap Carton Width:
5.31
Ship Carton Height:
11.73
Ship Weight:
4.01
Warranty:
5-Years
Weight:
3.75
Additional Info:
Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.1914
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
Malaysia
CRI:
80+
DLC Approved:
No
Efficacy:
137.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
High lumen per watt ratio
Feature 2:
Superior LED light output
Feature 3:
Rated for use in enclosed fixtures
Feature 4:
Advanced Thermal Management
Feature 5:
Suitable for use in damp locations
Feature 6:
Up to 35000 Hours of use
Feature 7:
4kV built-in surge protection
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:
600W
Housing Color:
White
Incandescent Equivalent:
750W
Includes:
Safety Cable
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Satco's S49677 120-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. T
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 9.25 in. Width: 9.25 in. Height: 17.32 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +50C (+122F)
Pack Type:
Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
Romance Copy:
Satco's 120-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. This ver
