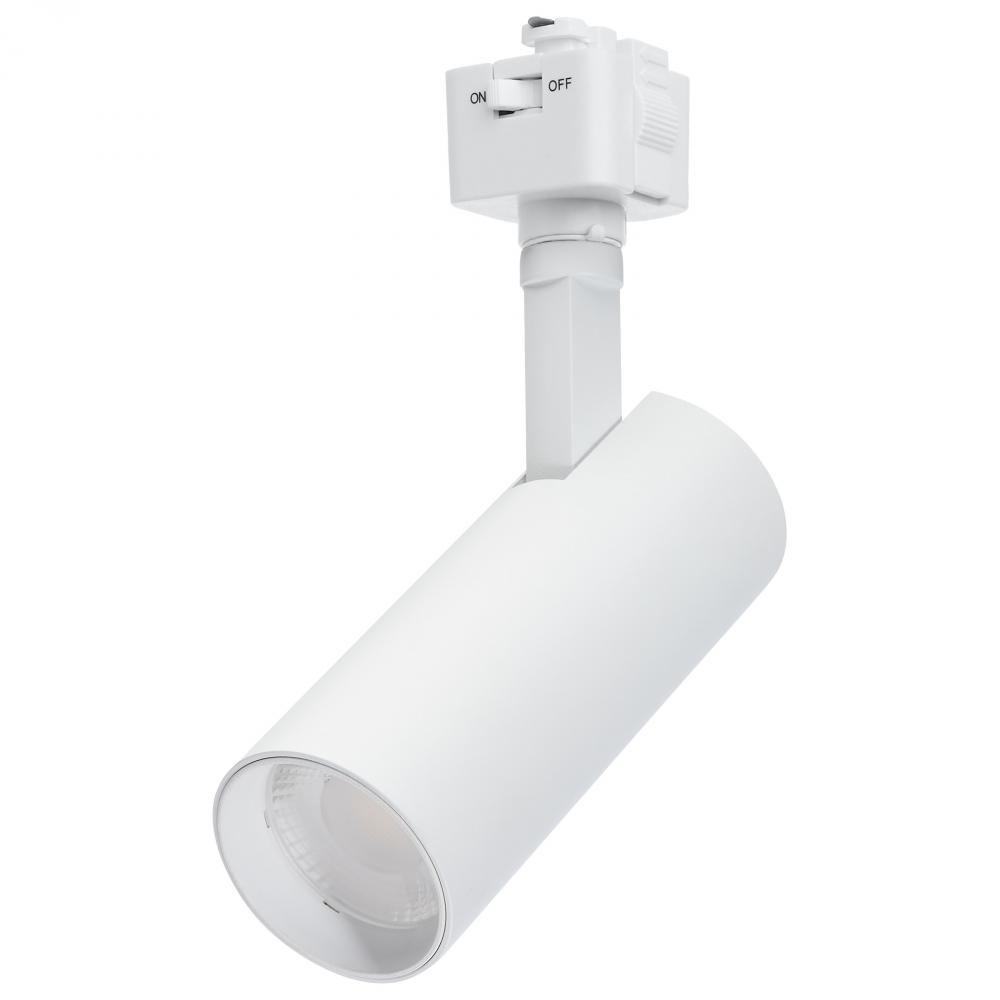

10 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish (A9ECV)
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A9ECV
Dimensions:
Height: 5.38"
Width: 2.00"
Matte White
Availability:
- Manufacturer has 647 items available.
Recommended Items
Description
Details
Downloads
10 Watt LED Track Head; 36 Degree Beam Spread; J-Style Track; 5 CCT Selectable; Matte White Finish
Category:
Track Ltg.
Subcategory:
Track Heads
Option:
LED
, Prop 65
Category:
Track Lighting
Sub Category:
Track Head
Style:
Contemporary
Bulb Volts1:
120V
Avg Rated Hours:
30000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
7.99
Each Length:
2.6
Each Width:
2.2
Length:
5
Lumens:
700L
Tariff Code:
9405.11.6020
Warranty:
3-Years
Amps:
0.090A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
36
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Function:
120V only
Dimming Type:
Triac
Each Cube:
0.0264
Each Quantity:
1
Efficacy:
70.00 LPW
FCC Compliant:
Yes
Feature 1:
J-Style Single and 2 Circuit Track Compatible
Feature 2:
36 Degree Beam Angle
Feature 3:
5 CCT Selectable
Feature 4:
90 CRI High Quality Light
Feature 5:
Matte White Finish
Feature 6:
Dimmable
Feature 7:
T24 Compliant
Feature 8:
30,000 Life Hours
Feature 9:
3 Year Warranty
Finish Family:
White
Has Camera:
No
Has Emergency Battery:
No
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
IOT Enabled:
No
Lens Finish:
Clear
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
New to SATCO NUVO, the TH5001 LED CCT Selectable track head fixture is finished in matte white, operates at 10 watts, and features a focused 36-degree beam angle-ideal for compact spotlighting applications. Now compatible with both Single Circuit and 2 Cir
Material:
Aluminum / Steel
Mounting Procedure:
Track
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
New to SATCO NUVO, these LED CCT Selectable track head fixtures are now compatible with both Single Circuit and 2 Circuit J-Style track systems, offering expanded versatility for a range of lighting applications. J-Style track-widely used in residential an
Safety Listing:
cETLus;cETLus - Listed
Short Description:
10W CCT LED TRK 36 WHT J-STYLE
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Track Head Style:
J-Style
Wattage Selectable:
No
Weight Lb.:
0.7
